The Inmarsat Mast Active Antenna ISD710 is a marine grade antenna for the Inmarsat GSPS service and whilst designed predominantly for maritime based applications, it can be also used in fixed site or mobile applications.

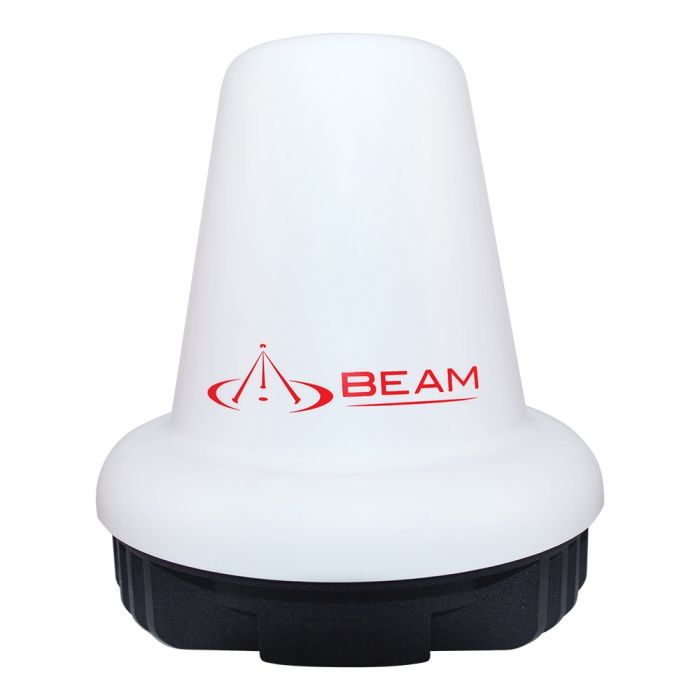

Inmarsat Beam Mast / Pole Marine Active Antenna (ISD710)
The antenna connections (GSPS and GPS) are protected from the environment with its solid bracket attached to the antenna. The pole mount system is designed so that the cables can be thread through a PVC pole and then attached to the antenna directly keeping the cables and the connector protected from the environment. The ISD710 works with all of the Beam Inmarsat IsatDock’s and Oceana terminals, however MUST only be used with Beam certified ACTIVE antenna cables.
| TYPE DE PRODUIT | TÉLÉPHONE SATELLITE |
|---|---|
| TYPE D'UTILISATION | FIXÉ, MARITIME, VÉHICULE |
| MARQUE | BEAM |
| PIÈCE NO. | ISD710 |
| RÉSEAU | INMARSAT |
| ZONE D’UTILISATION | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT VOICE |
| CARACTÉRISTIQUES | ACTIVE |
| LONGUEUR | 207 mm (8.15") |
| DIAMETER | 142 mm (5,60 metros) |
| POIDS | 0.87 kg (1.92 lbs) |
| FRÉQUENCE | L BAND (1-2 GHz) |
| TYPE D'ACCESSOIRE | ANTENNE |
| TEMPÉRATURE DE FONCTIONNEMENT | -40°C to 70°C |
Beam ISD710 Features
• Inmarsat type approved
• High quality marine enclosure
• Active antenna
• Pole / Mast mounting
• SMA/SMA
• Omni directional
• 12 month repair or replacement warranty
